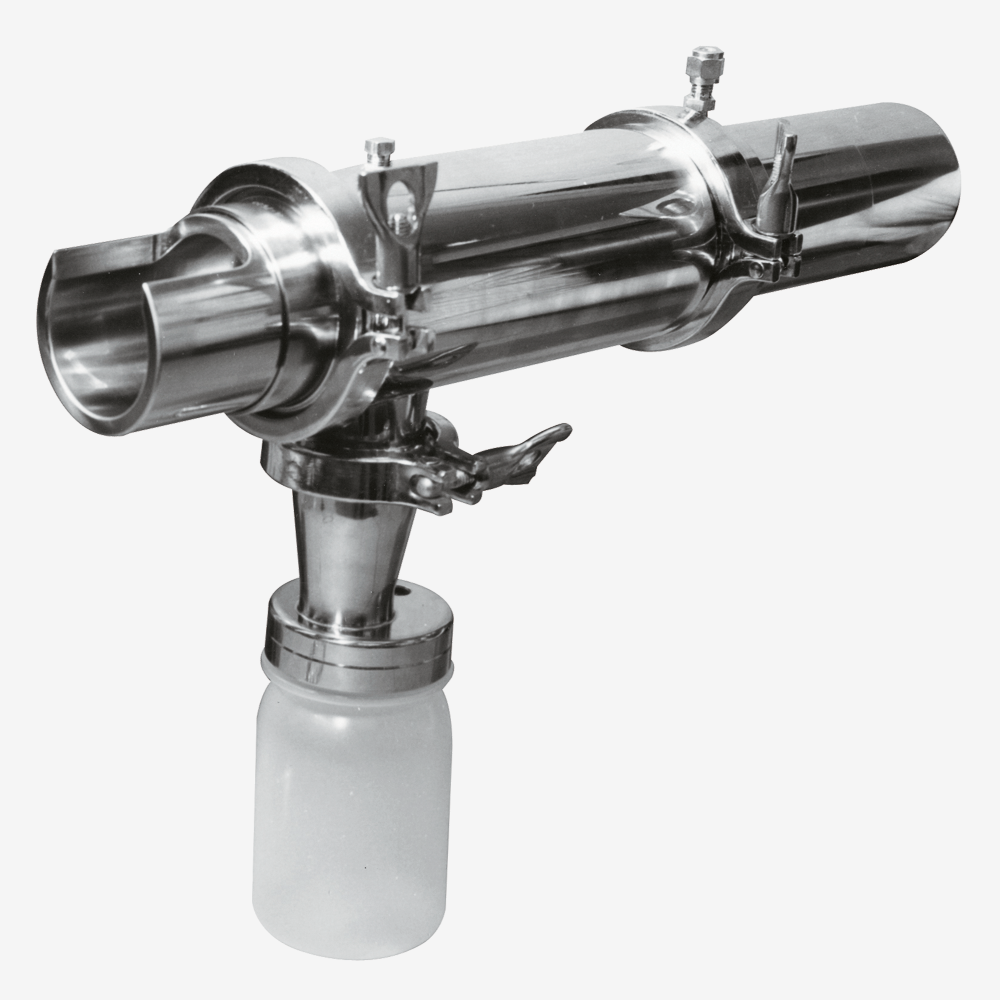

The Sentry ISOLOK SAE automatic point sampler is a larger capacity sampler that can handle large particles. It captures a volume of approximately 100 cc per cycle of particle sizes up to 3/4 inch (19 mm) without shearing or degrading the sampled material. An auxiliary top body port enables air ejection of non-free flowing materials.
An air cylinder extends a single plunger into the process material, then immediately withdraws, carrying a fixed amount of sample trapped in an annular ring between plunger seals. Process or flow ports are always closed, preventing leaks or product loss. There are no tubes or passages to become clogged. The gravity-discharged sample is transferred directly to a closed container.
Sample Volume | 90 cc or 100 cc |
---|---|
Max Process Pressure | 100 psig (6.9 barg) |
Process Temperature | 500°F (260°C) |
Wetted Materials | 316 SS |
Seal Material | EPDM |
