Single Line Sample System
Part #: 10-07267B
Get Started
Request A QuoteStill Have Questions?

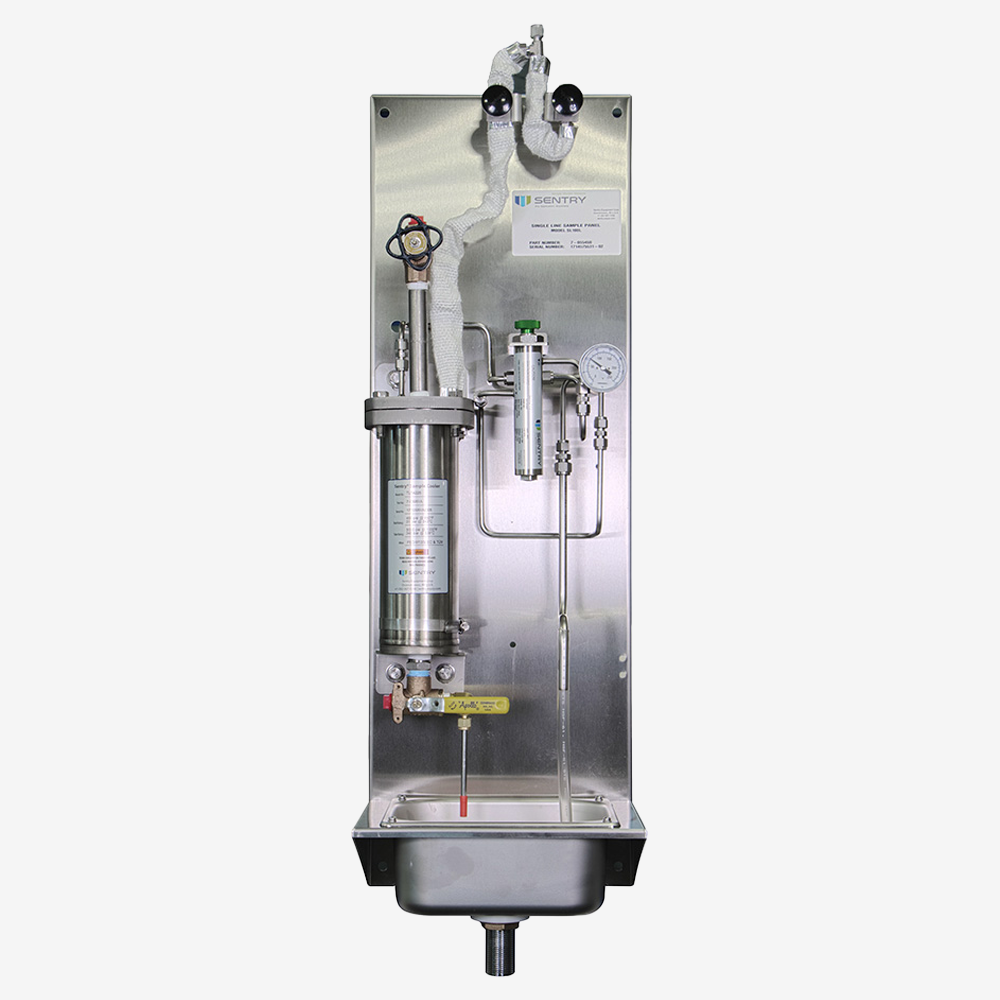

Contact UsSentry single line sample panels are pre-piped assemblies used to simplify the conditioning of steam, water or non-hazardous process samples.
Sentry single line sample panels, also known as grab sample stations, are pre-piped assemblies used to simplify the conditioning of steam, water or non-hazardous process samples. With the addition of cooling water, safe and representative samples can be obtained from individual sampling sites that are remotely located throughout the plant or from a small number of samples in a central location.
-
Low pressure models (SL100L & SL200L) are appropriate for samples up to 500 psig at 450°F (34 barg at 232°C)
-
High pressure models (SL100H & SL200H) handle samples up to 3030 psig at 1000°F (209 barg at 538°C)
-
High pressure panels rated up to 5000 psig (345 barg) are available upon request
-
Individual single line panels or multipanel racks can be customized to meet your specific requirements
-
Complete mechanical and electrical systems with full documentation are available
-
Add an analyzer or other analysis product
-

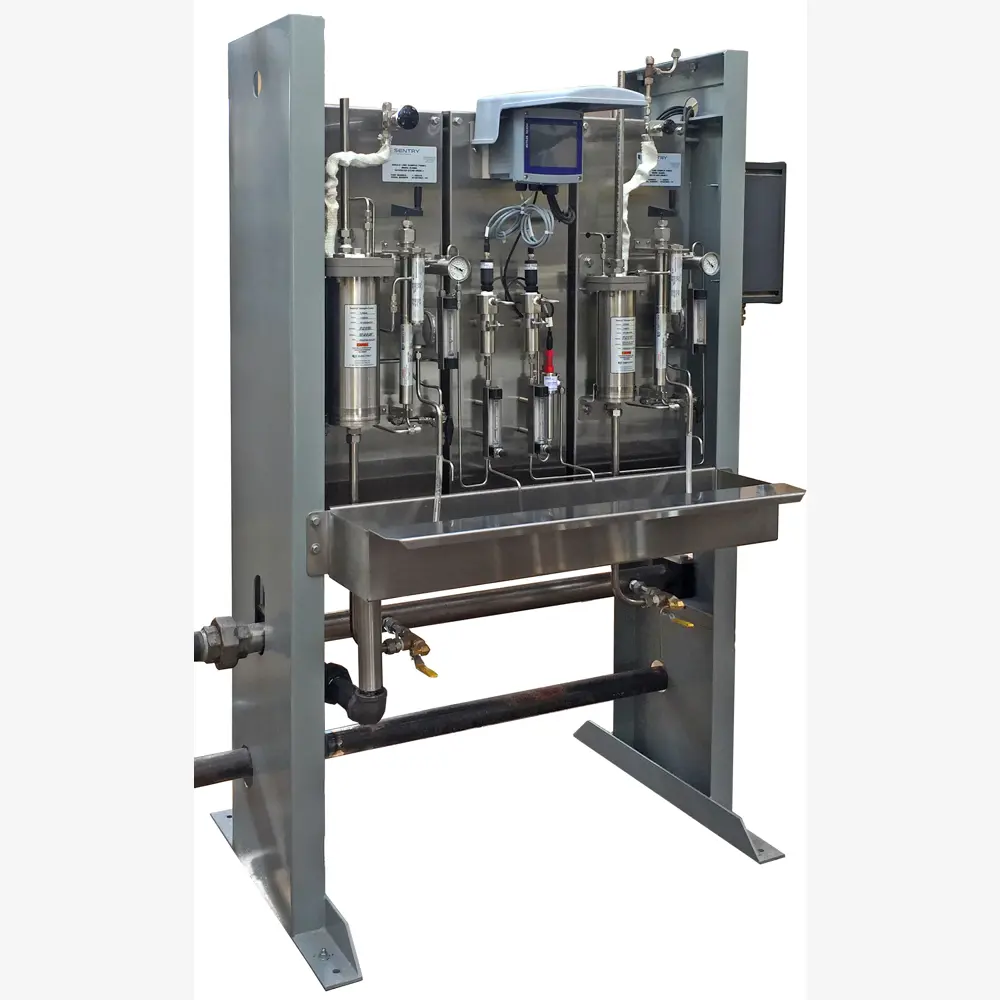

Create a complete sample system with analyzers and conditioning on the same rack
-
Use the back side of a freestanding floor rack to mount analysis equipment
-
Combine critical conditioning and analysis on a portable skid
| Components | SL 100L/H | SL 200L/H | ||
| Std | Opt | Std | Opt | |
| TLR-422 Sample Cooler (SC-1) | x | x | ||
| Temperature Indicator (TI-1) | x | x | ||
| Sink | x | x | ||
| Cooling Water Valves | x | x | ||
| Sample Isolation Valves (V-1/V-2) | x | x | ||
| Pressure Reducing Valve (PCV-1 or VREL) | x | x | ||
| Back Pressure Regulator (BPR/RV) | x | |||
| Analyzer Connection | x | |||
| Total Flow Indicator (F) | x | x | ||
| FLR-6225 Sample Cooler (SC-1) | x | x | ||
| Cooling Water Sight Glass (CWSG) | x | x | ||
| Secondary Sample Cooler (SC-2) | x | x | ||
| Shell Side Relief Valve | x | x | ||
| Thermal Shut-Off Valve (TSV-1) | x | x | ||
| Floor/Wall Mounted Back | x | x | ||
| High Pressure Blowdown Valve | x | x | ||
| Mobile Cart | x | |||
| Low Pressure Blowdown Valve (V-3) | x | |||
| Sample Side Relief Valve | x | |||
| Sample Filter (F-1) | x | |||
| Pressure Indicator (PI-1) | x | |||
| Sample Sentry II | x | |||
Related Resources
Learn more about how the Single Line Sample System can benefit your application with the following resources.
Marketing Materials

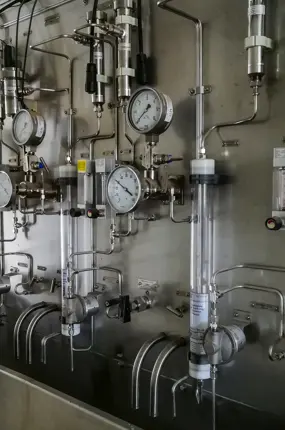

Keep it Cool with Sample Coolers
Marketing Materials
9 SWAS Spec Mistakes to Avoid
Spec Sheets

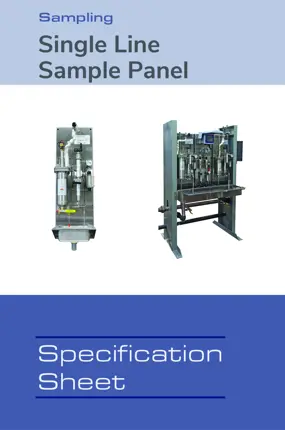

Single Line Sampling System
Instruction Manuals

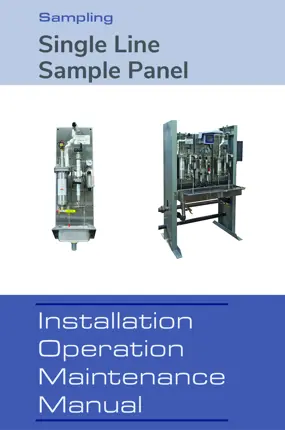

Single Line Sample Panel Instruction ManualNeed Something Else?
