Single Line Sample System
Part #: 10-07267B
Sentry single line sample panels are pre-piped assemblies used to simplify the conditioning of steam, water or non-hazardous process samples.
Sentry single line sample panels are pre-piped assemblies used to simplify the conditioning of steam, water or non-hazardous process samples. With the addition of cooling water, safe and representative samples can be obtained from individual sampling sites that are remotely located throughout the plant or from a small number of samples in a central location.
Low pressure models (SL100L & SL200L) are appropriate for samples up to 500 psig at 450°F (34 barg at 232°C)
High pressure models (SL100H & SL200H) handle samples up to 3030 psig at 1000°F (209 barg at 538°C)
High pressure panels rated up to 5000 psig (345 barg) are available upon request
Individual single line panels or multipanel racks can be customized to meet your specific requirements
Complete mechanical and electrical systems with full documentation are available
Add an analyzer or other analysis product
Create a complete sample system with analyzers and conditioning on the same rack
Use the back side of a freestanding floor rack to mount analysis equipment
Combine critical conditioning and analysis on a portable skid
|Components||SL 100L/H||SL 200L/H|
|TLR-422 Sample Cooler (SC-1)||x||x|
|Temperature Indicator (TI-1)||x||x|
|Cooling Water Valves||x||x|
|Sample Isolation Valves (V-1/V-2)||x||x|
|Pressure Reducing Valve (PCV-1 or VREL)||x||x|
|Back Pressure Regulator (BPR/RV)||x|
|Total Flow Indicator (F)||x||x|
|FLR-6225 Sample Cooler (SC-1)||x||x|
|Cooling Water Sight Glass (CWSG)||x||x|
|Secondary Sample Cooler (SC-2)||x||x|
|Shell Side Relief Valve||x||x|
|Thermal Shut-Off Valve (TSV-1)||x||x|
|Floor/Wall Mounted Back||x||x|
|High Pressure Blowdown Valve||x||x|
|Low Pressure Blowdown Valve (V-3)||x|
|Sample Side Relief Valve||x|
|Sample Filter (F-1)||x|
|Pressure Indicator (PI-1)||x|
|Sample Sentry II||x|

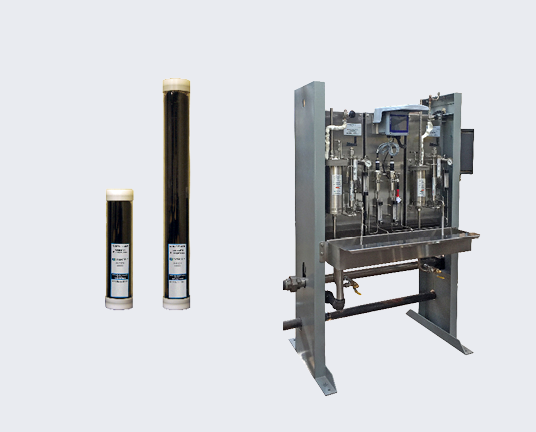

Learn more about how the Single Line Sample System can benefit your application with the following resources.
Need Something Else?
Review some other related products that could help your current application.

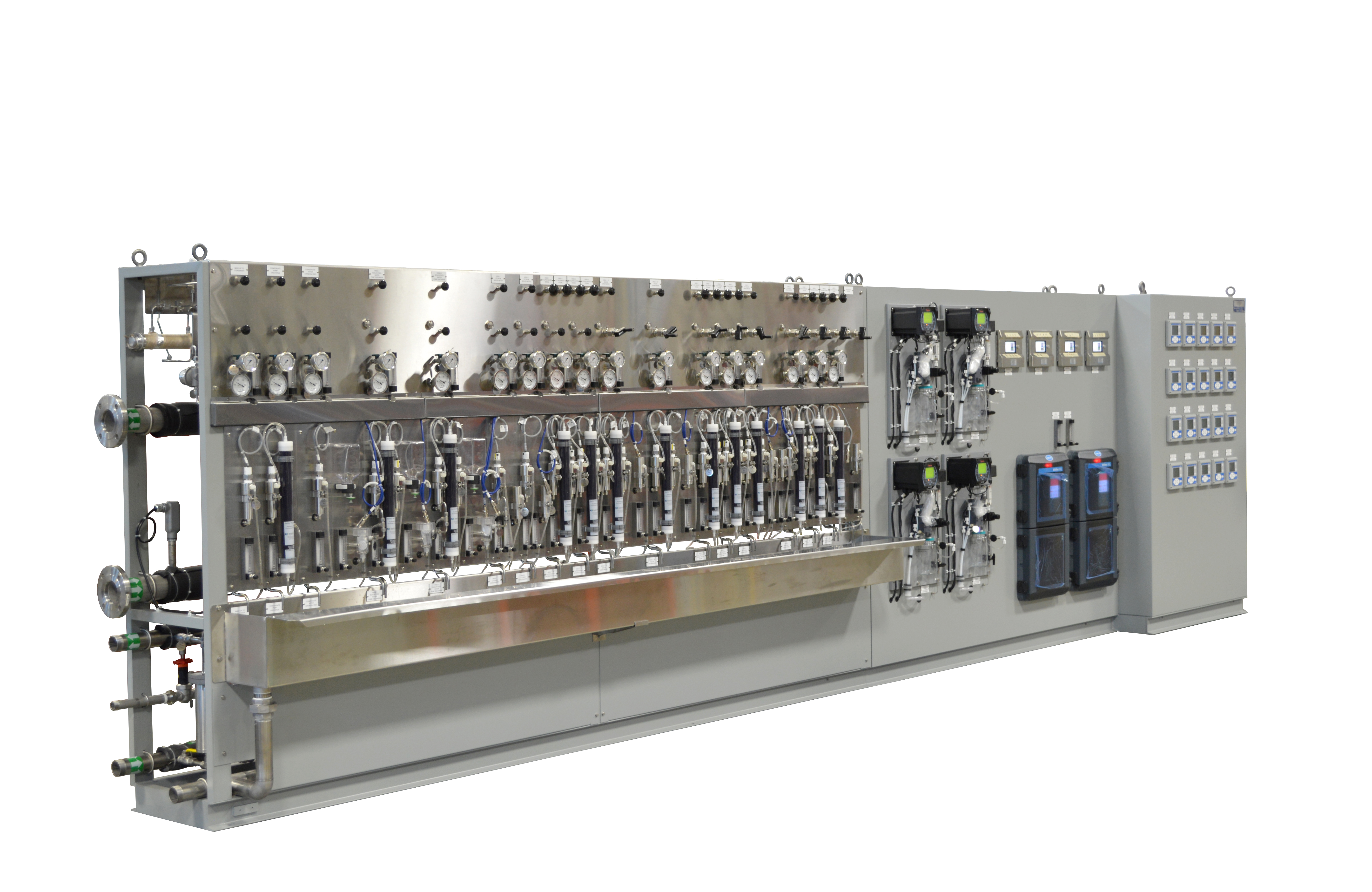

Steam and Water Analysis Systems
