SAA Automatic Fixed Volume Sampler
Part #: TBD
Get Started
Request A QuoteNot What You're Looking For?
Contact Us

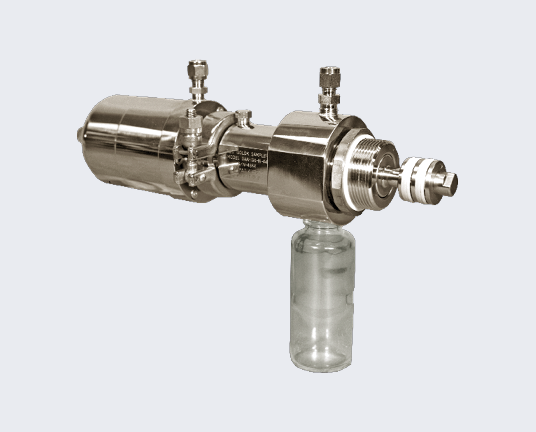

Designed for liquids and slurries such as acids, petrochemicals, and waste effluents, the ISOLOK SAA slurry sampler ensures that your samples are representative of your entire process and operators are protected from potentially hazardous products
This automatic sampler is made with 316 Stainless Steel components to meet different process applications.
The ISOLOK sampler's design uses compressed air and an electrical controller to force a plunger into up to 200 psi (13.8 bar) pressurized processes for complete representative sampling.
The ISOLOK sampler's design uses compressed air and an electrical controller to force a plunger into up to 200 psi (13.8 bar) pressurized processes for complete representative sampling.
- This ISOLOK SAA slurry sampler has a variety of options such as various materials of construction and seal materials, port closures, different container types, sample enclosures, etc.
- The sampler is available with two different sample sizes, 3 cc or 8 cc per sample cycle.

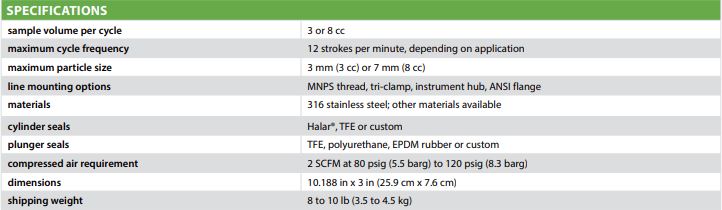

Sample volume per cycle | 3 or 8 cc |
Maximum cycle frequency | 12 strokes per minute, depending on application |
Maximum particle size | 3 mm (3 cc) or 7 mm (8 cc) |
Line mounting options | MNPS thread, tri-clamp, instrument hub, ANSI flange |
Materials | 316 stainless steel; other materials available |
Cylinder seals | HalarĀ®, TFE or custom |
Plunger seals | TFE, polyurethane, EPDM rubber, FFKM or custom |
Compressed air requirements | 2 SCFM at 80 psig (5.5 barg) to 120 psig (8.3 barg) |
Dimensions | 10.188 in x 3 in (25.9 cm x 7.6 cm) |
Shipping weight | 8 to 10 lb (3.5 to 4.5 kg) |
